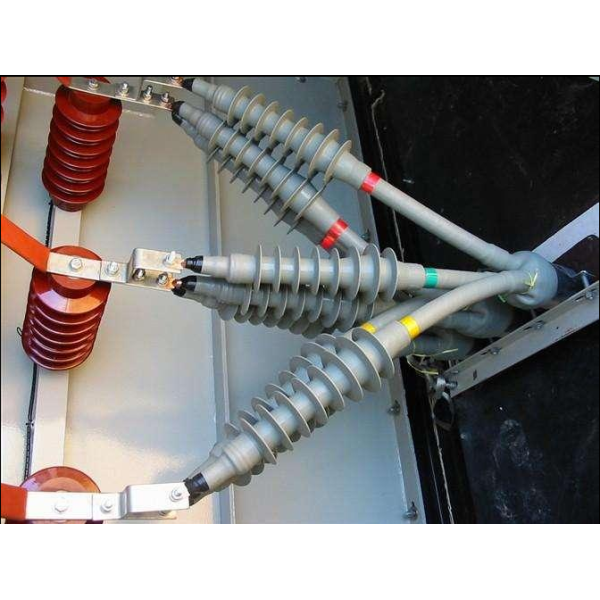

Cold Shrink Cable Termination Kit for Medium Voltage Power Cables 12kV–36kV Indoor & Outdoor Applications
The Cold Shrink Cable Termination Kit is designed for medium-voltage power cable termination and insulation protection. Utilizing advanced pre-expanded silicone rubber technology, the kit provides excellent electrical insulation, moisture sealing, and environmental protection without requiring heat, flames, or special heating tools during installation.
Widely used in power transmission and distribution systems, substations, renewable energy projects, industrial plants, and utility networks, cold shrink terminations offer a safe, efficient, and maintenance-free solution for medium-voltage cable connections.
Product Features
Heat-Free Installation
The cold shrink design eliminates the need for torches or heat guns. Simply remove the supporting core, and the silicone tube automatically contracts to create a secure seal around the cable.
Advantages
✔ Faster installation
✔ Improved installation safety
✔ Reduced labor requirements
✔ Suitable for confined spaces
Excellent Insulation Performance
Manufactured from high-grade silicone rubber with superior dielectric properties, ensuring stable electrical performance under various operating conditions.
Benefits
✔ High insulation strength
✔ Excellent tracking resistance
✔ Reliable long-term performance
Superior Environmental Protection
The integrated sealing system prevents moisture ingress and protects against dust, UV exposure, pollution, and harsh weather conditions.
Benefits
✔ Waterproof and weatherproof
✔ UV-resistant
✔ Suitable for coastal and industrial environments
Wide Temperature Adaptability
The elastic silicone material maintains stable performance across extreme temperatures.
Operating Range
-40°C to +120°C
Suitable for hot, cold, humid, and high-altitude regions.
Product Components
Complete Cold Shrink Termination Kit
A standard kit typically includes:
- Cold Shrink Insulation Tubes
- Stress Control Tubes
- Breakout Assembly
- Silicone Sealing Components
- Constant Force Springs
- Copper Mesh or Grounding Braid
- Semi-Conductive Tape
- PVC Insulation Tape
- Cleaning Tissue
- Installation Instructions
Technical Specifications
| Item | Specification |
| Product Type | Cold Shrink Cable Termination Kit |
| Voltage Class | 12kV / 15kV / 24kV / 35kV / 36kV |
| Installation Type | Indoor / Outdoor |
| Insulation Material | Silicone Rubber |
| Operating Temperature | -40°C to +120°C |
| UV Resistance | Excellent |
| Waterproof Performance | High |
| Cable Type | XLPE / EPR / PVC Insulated Power Cable |
| Core Type | Single Core / Three Core |
| Standards | IEC 60502, IEEE 48 |
| Service Life | 20+ Years |
Custom voltage ratings and cable sizes are available upon request.
Typical Applications
Renewable Energy Projects
Industrial Facilities
Infrastructure Projects
