Aluminium Braid Flexible Grounding Connector for Electrical Bonding and Earthing Applications
Aluminium braid is a lightweight and flexible conductor made from multiple strands of high-purity aluminium wire woven into a flat or tubular structure. It is widely used in electrical grounding systems, switchgear connections, transformer grounding, rail transit systems, renewable energy projects, and industrial equipment where flexibility, conductivity, and corrosion resistance are required.
Compared with solid conductors, aluminium braided conductors provide better flexibility, vibration resistance, and installation convenience while maintaining excellent electrical performance.
Technical Specifications
| Item | Specification |
| Conductor Material | High Purity Aluminium |
| Construction | Flat Braided / Tubular Braided |
| Surface Treatment | Natural Aluminium / Tin-Plated (Optional) |
| Cross Section Area | 6 mm² – 300 mm² |
| Width Range | 10 mm – 120 mm |
| Operating Temperature | -40°C to +105°C |
| Voltage Rating | Customizable |
| Terminal Type | Bare Ends / Crimped Lugs / Customized Connectors |
| Standards | IEC, ASTM, GB, RoHS Compliant |
Typical Applications
- Electrical grounding systems
- Transformer grounding connections
- Switchgear bonding
- Power distribution equipment
- Solar photovoltaic systems
- Wind power installations
- Railway electrical systems
- Industrial machinery grounding
- Battery energy storage systems

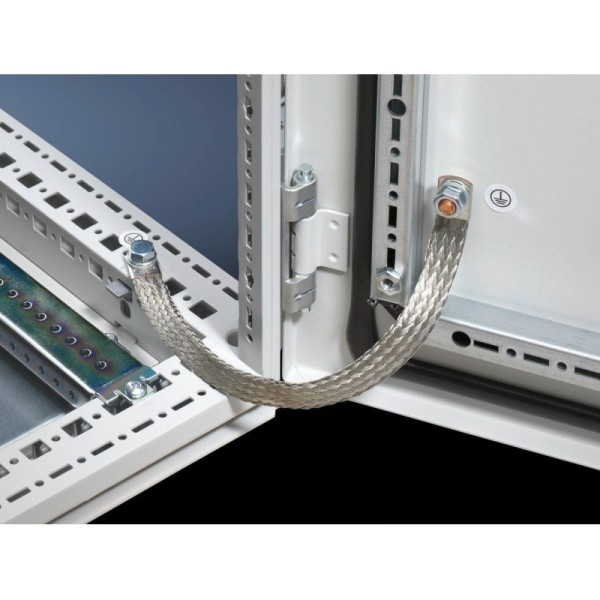

- Electrical cabinet bonding
Why Choose Our Aluminium Braid?
✔ High-purity aluminium material
✔ Stable electrical performance
✔ Lightweight and easy installation
✔ Custom dimensions available
✔ OEM & ODM manufacturing support
✔ Strict quality inspection before delivery
✔ Suitable for domestic and international standards
Whether used for grounding, bonding, or flexible power connections, our aluminium braid provides dependable performance, long service life, and cost-efficient operation for industrial and electrical projects.
FAQ
1. What is aluminium braid used for?
Aluminium braid is mainly used for grounding, bonding, electrical connections, lightning protection systems, and flexible conductor applications.
2. Can aluminium braid replace copper braid?
In many grounding and bonding applications, aluminium braid can be a cost-effective alternative to copper braid when conductivity requirements permit.
3. Is custom size available?
Yes. Width, thickness, braid density, length, and terminal types can all be customized.
4. Can you provide crimped terminals?

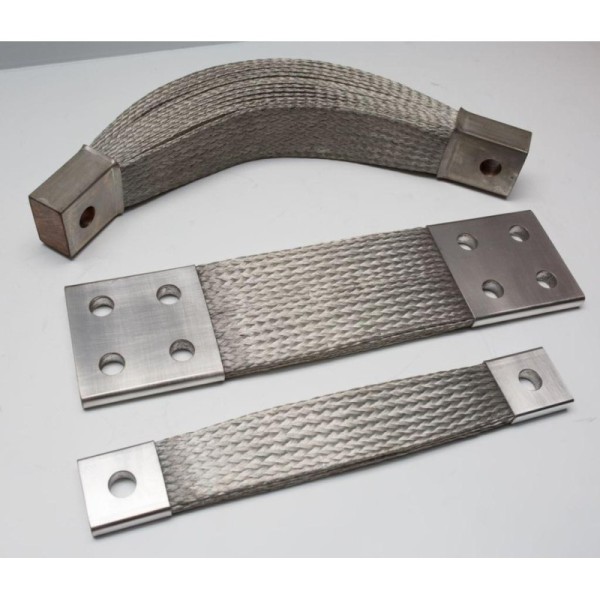

Yes. We can supply aluminium braid assemblies with copper, aluminium, or tinned terminals according to project requirements.
Request a Quote
Looking for a reliable aluminium Braid for you?
Contact us with your required voltage, capacity, cooling method, and installation conditions. Our engineering team will provide a customized solution, technical proposal, and competitive quotation tailored to your project needs.
