Heat Shrink Cable Termination Kit For Power Cable (MV / HV Systems)

The Heat Shrink Cable Termination Kit is an electrical accessory designed for terminating medium and high-voltage power cables in distribution and transmission networks. It relies on thermally activated polymer tubing that contracts under controlled heating, forming a tight insulating and sealing layer over prepared cable ends.

This solution is widely applied in utility grids, industrial power systems, and renewable energy projects where stable insulation performance and cost-efficient installation are required.

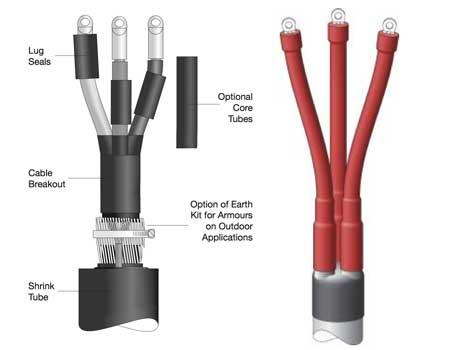

Product Structure Overview

Typical configuration includes:

• Heat shrink insulation tubing
• Stress control cone or mastic system
• Semi-conductive shielding interface
• Inner adhesive layer for sealing
• Cable lug / connector assembly
• Weatherproof sealing accessories

Technical Specifications

Product Features

1. Thermally Activated Shrink System

The core components are manufactured from cross-linked polyolefin materials that respond to heat exposure. Once heated evenly, the tubing contracts to conform tightly to the cable surface, ensuring uniform insulation coverage and mechanical grip.

2. Stable Electrical Insulation Behavior

The system provides high dielectric strength, helping maintain safe operation under medium and high-voltage conditions. It reduces the risk of surface tracking and partial discharge when installed correctly.

3. Built-In Stress Relief Design

Stress control components are integrated into the termination structure to regulate electric field distribution at the cable end, improving long-term electrical stability and reducing localized electrical stress.

4. Durable Environmental Protection

The outer materials are engineered to resist UV exposure, humidity, and chemical corrosion. This allows reliable use in both indoor substations and outdoor exposed environments.

5. Economical Engineering Solution

Compared with cold shrink alternatives, heat shrink termination kits offer a lower material cost, making them suitable for large-scale grid construction and infrastructure projects.

Application Areas

The heat shrink termination kit is commonly used in:

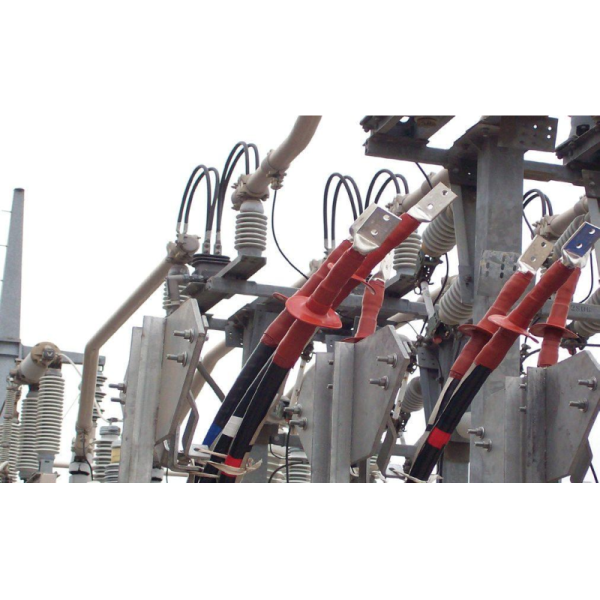

• Power transmission and distribution substations
• Industrial manufacturing and heavy electrical systems
• Wind power and solar photovoltaic installations
• Urban underground cable distribution networks
• Railway and transportation electrification systems
• Electrical equipment connection terminals
• Cable repair and retrofit projects

Advantages

• Mature and widely proven installation technology
• Lower cost compared with cold shrink systems
• Strong insulation and mechanical protection
• Suitable for standardized grid construction projects
• Flexible compatibility with common cable types
• Long service life when installed correctly

FAQ

Q1: What is a heat shrink cable termination kit used for?

It is used to insulate and protect the end of power cables, ensuring safe electrical connection between cables and equipment.

Q2: How is it installed?

The tube is placed over the prepared cable and then heated using a hot air gun or controlled flame until it shrinks tightly around the cable.

Q3: Is it suitable for outdoor use?

Yes. It is designed with UV-resistant and moisture-resistant materials suitable for outdoor substations and exposed environments.

Q4: What voltage range does it support?

It is typically used for low voltage up to 35kV medium and high voltage systems.

Q5: What are its limitations compared to cold shrink?

It requires heat tools for installation and is more sensitive to installation quality, but it offers a lower cost advantage.
